Description
Product Description

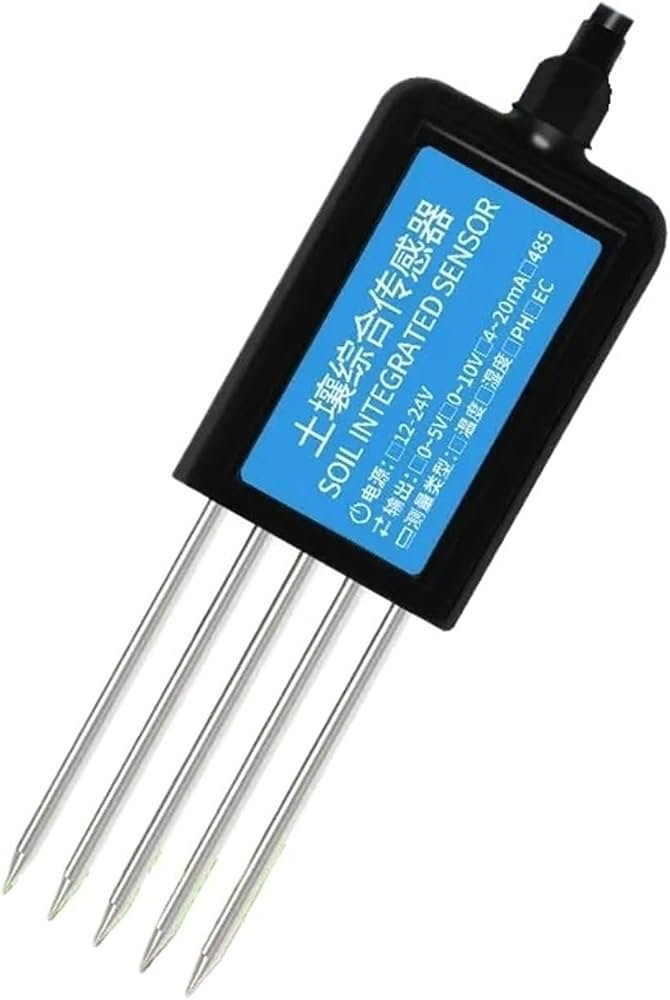

The 7-in-1 Soil Sensor is a multifunctional agricultural monitoring sensor designed to provide several important soil parameters from a single probe. It measures soil moisture, temperature, electrical conductivity (EC), pH, and NPK levels, making it suitable for precision agriculture, greenhouse monitoring, smart irrigation, and IoT-based farming systems.
The sensor supports multiple output options, including RS485, 4–20 mA, 0–5 V, 0–10 V, allowing it to be integrated into different monitoring and data-acquisition systems. Its IP68 protection rating, fast response time of less than 1 second, and wide operating temperature range make it suitable for demanding agricultural environments.
Specifications
| Specification | Details |
|---|---|
| Product Type | 7-in-1 Soil Monitoring Sensor |
| Model | TP24004 |
| Measured Parameters | Soil moisture, temperature, EC, pH, NPK |
| Power Supply | DC 12–24 V |
| Output Signals | RS485 / 4–20 mA / 0–5 V / 0–10 V / Wi-Fi / 4G |
| Protection Rating | IP68 |
| Response Time | <1 second |
| Temperature Range | -40°C to 80°C |
| Temperature Accuracy | ±0.5°C |
| Moisture Range | 0–100% |
| Moisture Accuracy | ±3% RH (0–53%); ±5% RH (53–100%) |
| EC Measurement Range | 0–10,000 µS/cm |
| EC Resolution | 10 µS/cm |
| pH Measurement Range | 3–9 pH |
| pH Accuracy | ±0.3 pH |
| NPK Measurement Range | 0–1,999 mg/kg |
| NPK Accuracy | ±2% F.S. |
| Installation | Probe partially or fully embedded in the measured medium |
| Storage Temperature | -20°C to 60°C |
| Dimensions | 142 × 45 × 15 mm |
| Application | Precision agriculture, greenhouse monitoring, smart irrigation, environmental monitoring and IoT |
