🔍 Product Overview

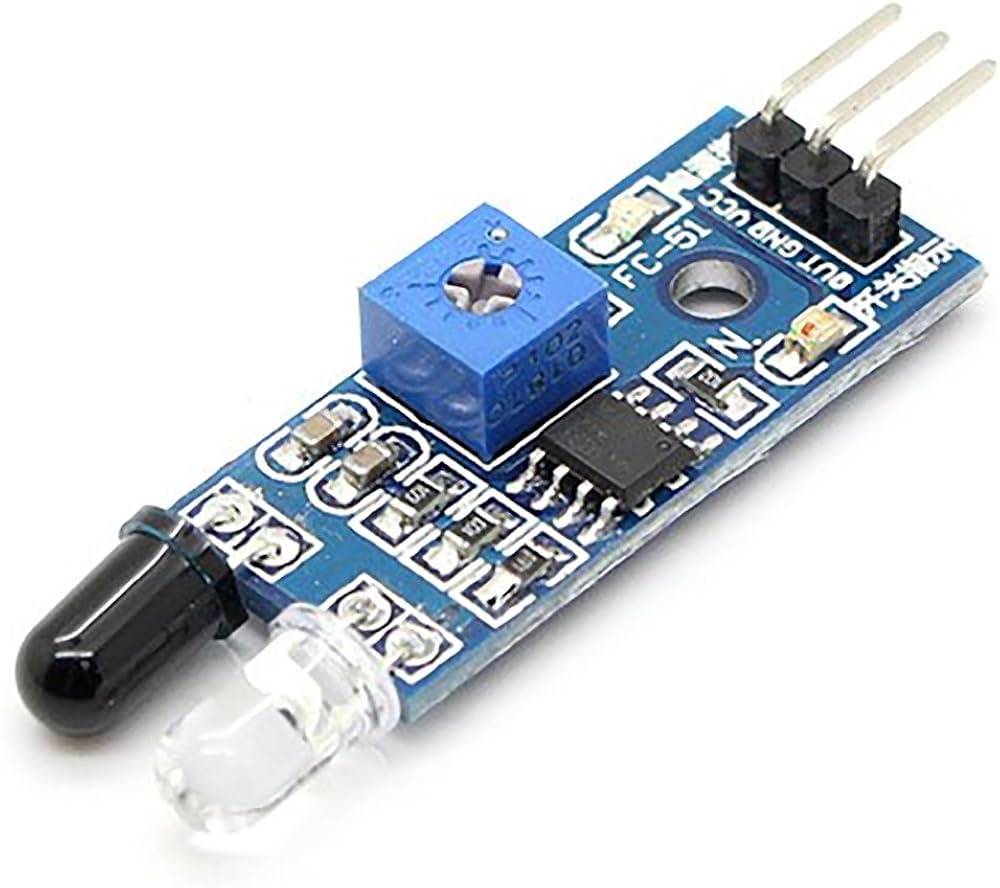

Enjoy watching how it works -This IR Infrared Obstacle Avoidance Sensor Module is a compact, reflective-type proximity sensor perfect for detecting nearby objects within a defined range. It works by emitting infrared light and measuring the reflection from obstacles—ideal for robotics, automation and DIY projects that require simple, effective obstacle detection.

---

🚀 Why It’s Ideal for Your Projects

• Easy object detection – The module triggers when an object comes into range, allowing you to detect obstacles, edges, or approaching items without complex setups.

• Adjustable sensitivity – With a built-in potentiometer, you can fine-tune the detection distance to suit your specific project, whether for close-range or farther sensing.

• Microcontroller-friendly interface – Operates from 3.3 to 5 V and provides a clean digital signal output (active low) that plugs directly into Arduino, ESP32, Raspberry Pi GPIOs or other controllers.

---

📝 Key Features

• Operating voltage: ≈ 3.3 V to 5 V DC

• Output: Digital signal (low when obstacle detected)

• Typical detection distance: ~2 cm to ~30 cm (adjustable)

• Detection angle: Approximately 35°

• Compact module with 3-wire interface: VCC, GND, OUT

• Mounting holes (≈ Ø 3 mm) for easy fixing to chassis or robotics frames

• Onboard indicator LED shows when sensor is powered and when detection occurs

---

🎯 Typical Applications

• Robotics & mobile platforms – Use for front bumper obstacle sensing, edge detection, or simple avoidance routines.

• Automation & smart systems – Trigger alarms, stop conveyors, count items or initiate events when objects pass by.

• DIY and educational projects – Ideal for beginners learning proximity sensing, control logic and microcontroller interfacing.

• Assistive devices or interactive installations – Detect presence or movement to activate lights, sounds or mechanical responses.

---

✅ Why You’ll Love It

This IR obstacle sensor module gives you reliable, cost-effective object detection in a simple form factor. It’s easy to integrate, tune and deploy — making it a go-to module for hobbyists, educators and professionals alike when you need fast, low-complexity obstacle sensing.
