Description

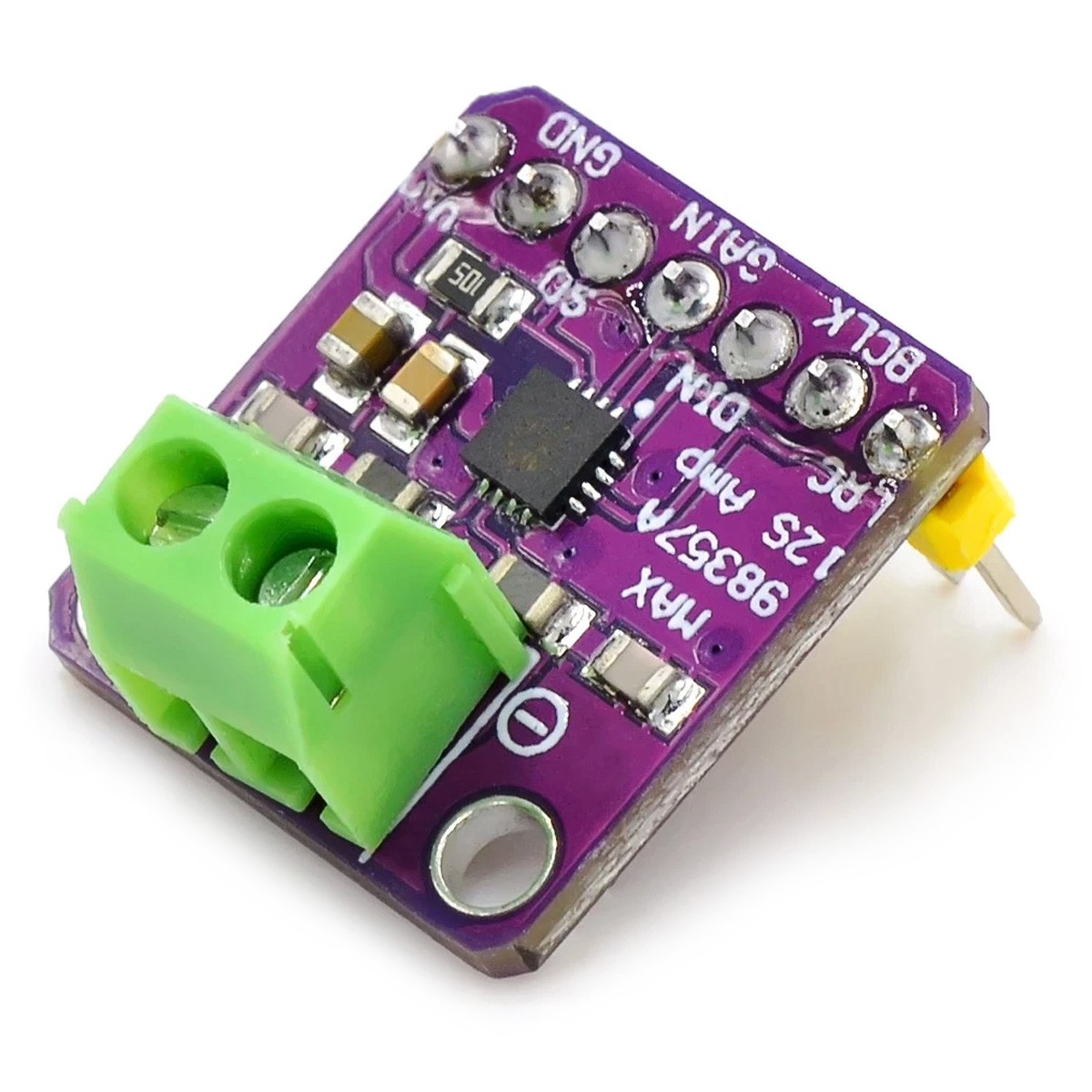

The MAX98357A I2S Audio Amplifier Module is a powerful and compact solution for adding high-quality audio output to embedded systems and IoT projects. It combines a digital-to-analog converter (DAC) and a Class-D audio amplifier in a single module, allowing direct connection between a microcontroller and a speaker.

Unlike traditional amplifiers, this module accepts digital audio input via the I2S interface, eliminating the need for an external DAC and simplifying circuit design. It converts digital signals into analog audio and amplifies them to drive speakers efficiently.

The amplifier delivers up to 3W output power (into 4Ω speaker) while maintaining high efficiency (over 90%), making it suitable for battery-powered and portable applications.

Operating within a 2.5V–5.5V voltage range, it is fully compatible with popular development platforms such as Arduino, ESP32, and Raspberry Pi. Its compact size (around 2cm) makes it easy to integrate into space-constrained designs.

The module supports mono output (left, right, or combined channels) and offers low distortion, low noise, and stable performance. Built-in protection features such as thermal shutdown and short-circuit protection ensure safe operation.

Key Applications

• DIY Bluetooth and WiFi speakers
• ESP32 / Raspberry Pi audio projects
• Smart home voice systems
• IoT devices with sound output
• MP3 players and audio playback systems

With its all-in-one design, high efficiency, and ease of use, the MAX98357A amplifier module is an excellent choice for developers looking to implement clean and reliable digital audio in their projects.
