Description

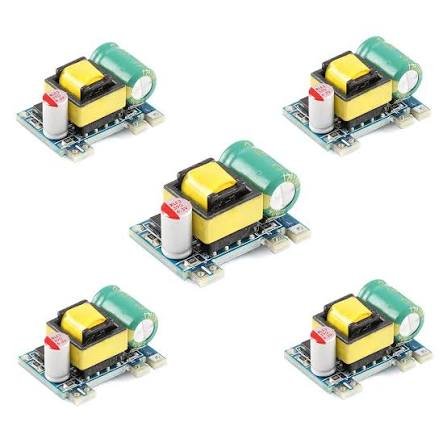

The Isolated AC-DC Switching Power Supply Module is a compact, high-efficiency power converter available in 5V, 12V, and 24V output options. With a wide 85–265V AC input, built-in isolation, and multiple power ratings up to 25W, it is ideal for IoT devices, smart home systems, industrial automation, embedded electronics, LED controllers, and DIY power supply applications.
| Specification | Details |
|---|---|
| Product Name | Isolated AC-DC Switching Power Supply Module |
| Input Voltage | AC 85–265V, 50/60Hz |
| Available Output Voltages | 5V DC, 12V DC, 24V DC |
| Available Output Currents | 700mA, 300mA, 2A, 1A |
| Available Power Ratings | 3.5W, 24W, 25W |
| Isolation Type | Galvanically Isolated |
| Power Conversion | AC to DC Switching Power Supply |
| Output Regulation | Regulated DC Output |
| Protection Features | Short Circuit Protection, Overload Protection, Over-Temperature Protection |
| Input Frequency | 50/60Hz |
| Cooling Method | Natural Air Cooling |
| Mounting Type | PCB Through-Hole |
| Efficiency | High Efficiency Switching Design |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Applications | Smart Home Devices, IoT Projects, Industrial Control, Embedded Systems, LED Lighting, Automation Equipment, Security Systems, Instrumentation, DIY Electronics |
Variant Specifications
| Variant | Output Voltage | Output Current | Rated Power |
|---|---|---|---|
| 5V 700mA (Old Version) | 5V DC | 700mA | 3.5W |
| 5V 700mA (New Version) | 5V DC | 700mA | 3.5W |
| 12V 300mA | 12V DC | 300mA | 3.5W |
| 12V 2A | 12V DC | 2A | 24W–25W |
| 24V 1A | 24V DC | 1A | 24W–25W |
