Description

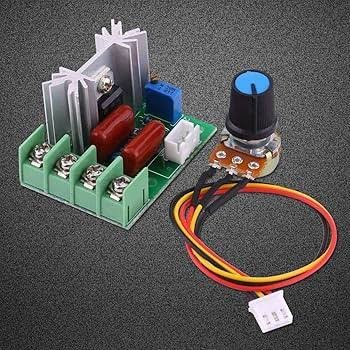

The 220V 2000W SCR Voltage Regulator Module is a high-power AC voltage controller designed for smooth adjustment of voltage, motor speed, light brightness, and heating temperature. Utilizing SCR (Silicon Controlled Rectifier) phase-angle control, it is ideal for electric heaters, soldering irons, fans, universal motors, and DIY electronics projects.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 220V 2000W SCR Voltage Regulator Module |
| Input Voltage | AC 220–240V, 50/60Hz |
| Output Voltage | Adjustable AC 50V–220V (Typical) |
| Maximum Power | 2000W |
| Maximum Current | Up to 10A (Resistive Load) |
| Control Method | SCR (Silicon Controlled Rectifier) Phase-Angle Control |
| Adjustment Method | Rotary Potentiometer with Knob |
| Cooling | Aluminum Heat Sink |
| Efficiency | High Efficiency SCR Control |
| Dimensions | Approximately 48 × 35 × 27 mm |
| Weight | Approximately 40–45 g |
| Operating Temperature | -20°C to +80°C |
| Terminal Type | Screw Terminal Blocks |
| Compatible Loads | Resistive Loads, Universal Motors, Incandescent Lamps, Heating Elements |
| Applications | Light Dimming, Fan Speed Control, Universal Motor Speed Control, Heater Temperature Regulation, Soldering Iron Power Control, Laboratory Equipment, DIY Electronics, Industrial Automation |
