🔍 Product Overview

Click here to view it -The TIP3055 is a robust NPN bipolar junction power transistor, designed to handle high currents and voltages within switching and amplifier applications. Housed typically in a TO-247 package, it serves as a reliable building block for power electronics, motor drivers, and high-current control circuits.

---

🚀 Why It’s Ideal for Your Projects

• High current and voltage capability — This transistor supports up to 15 A of continuous collector current and a collector-emitter voltage rating of around 60 V, making it suitable for driving substantial loads.

• Power-handling capacity — With a maximum power dissipation around 90 W (under ideal conditions), it can manage demanding applications when properly heatsinked.

• Low saturation and good gain — At moderate currents, the transistor offers a low collector-emitter saturation voltage and a DC current gain (hFE) sufficient for many designs, making it efficient and responsive.

---

📝 Key Features

• Type: NPN power transistor

• Maximum collector-emitter voltage (V₍CEO₎): ~60 V

• Maximum continuous collector current (I₍C₎): ~15 A

• Maximum power dissipation (P₍D₎): ~90 W at 25 °C case temperature

• DC current gain (hFE): typically 20–70 at I₍C₎ ≈4 A

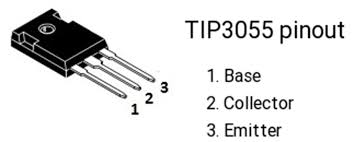

• Package: Through-hole TO-247 (3-pin) — ensuring good thermal performance

• Junction temperature range: up to 150 °C maximum

---

🎯 Typical Applications

• Motor drivers and control circuits where high current switching is needed

• Power supply pass transistors, voltage regulators, or linear amplifier stages

• Switching of relays, solenoids, or high-power loads in DIY projects or industrial applications

• Audio amplifier output stages, especially in hobbyist or semi-professional gear

---

✅ Why You’ll Love It

If your project demands a transistor that can handle serious power — both in terms of current and voltage — the TIP3055 offers excellent capability at an affordable price point. With proper thermal management, this part is versatile, dependable, and widely used, making it easier to find support, documentation, and replacement options.
