🔍 Product Overview

View the item -The TIP2955 is a high-power PNP bipolar junction transistor housed in a TO-247 style package. It’s purpose-built for applications requiring robust switching or amplification performance, especially in scenarios demanding significant current and voltage handling.

---

🚀 Why It’s Ideal for Your Projects

• Strong current and voltage capacity: With a collector-emitter voltage rating up to ~60 V and continuous collector current up to ~15 A, this transistor can handle substantial loads.

• High power dissipation capability: Rated for up to 90 W under ideal heat-sink conditions, making it capable of serious power control when properly mounted.

• Complementary design: Functions as the PNP counterpart to many NPN power transistors, making it ideal for push-pull amplifier stages and symmetrical power circuits.

---

📝 Key Features

• Type: PNP power transistor

• Maximum collector-emitter voltage (V CEO): ~60 V (and collector-base up to ~100 V)

• Maximum collector current (I C): ~15 A

• Maximum power dissipation (P D): ~90 W at 25 °C case temperature

• DC current gain (h_FE): typically ~20-70 when I_C ≈ 4 A

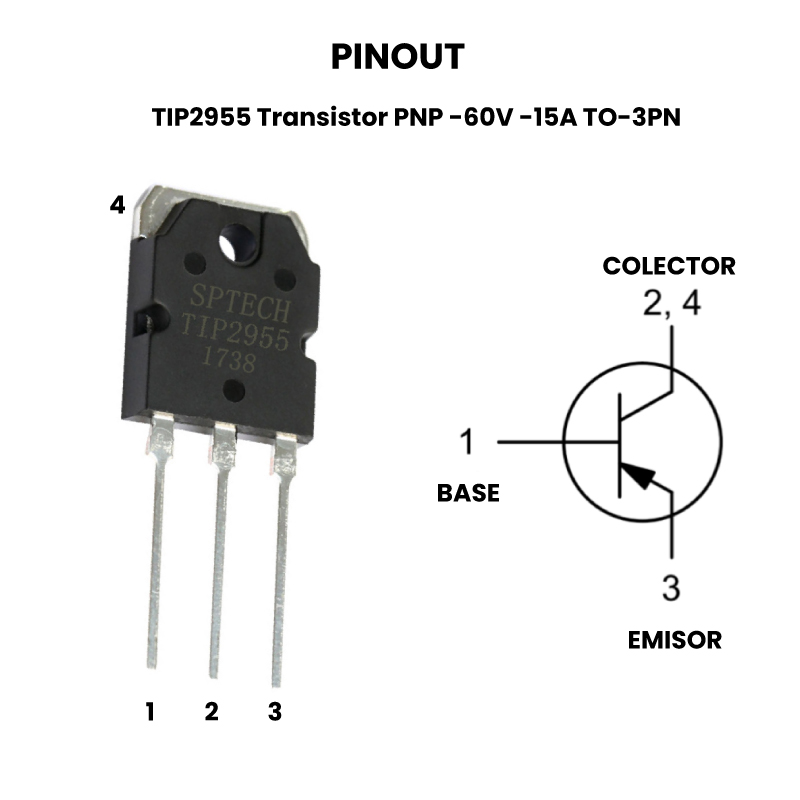

• Package: Through-hole, TO-247 (3 pins)

• Operating junction temperature range: up to ~150 °C

• Low collector-emitter saturation voltage, enhancing efficiency under load

---

🎯 Typical Applications

• Power amplifier output stages – Especially when constructing complementary (PNP/NPN) pairs for audio or linear amplification.

• High-current switching circuits – Use in motor drivers, power supplies, or large load switching where high current and moderate voltage are required.

• Regulators and power control modules – Suitable for series pass regulators or transistor arrays handling demanding current loads.

• Power electronics projects – When designing hobby or professional power systems that require a PNP high-current device with proven reliability.

---

✅ Why You’ll Love It

If you’re building a circuit that needs a reliable, high-power PNP transistor with real current and voltage headroom, the TIP2955 is a fantastic choice. It brings industrial-grade capability to hobbyist and professional builds alike — just remember proper heatsinking and thermal management if you’re pushing it near its limits.
