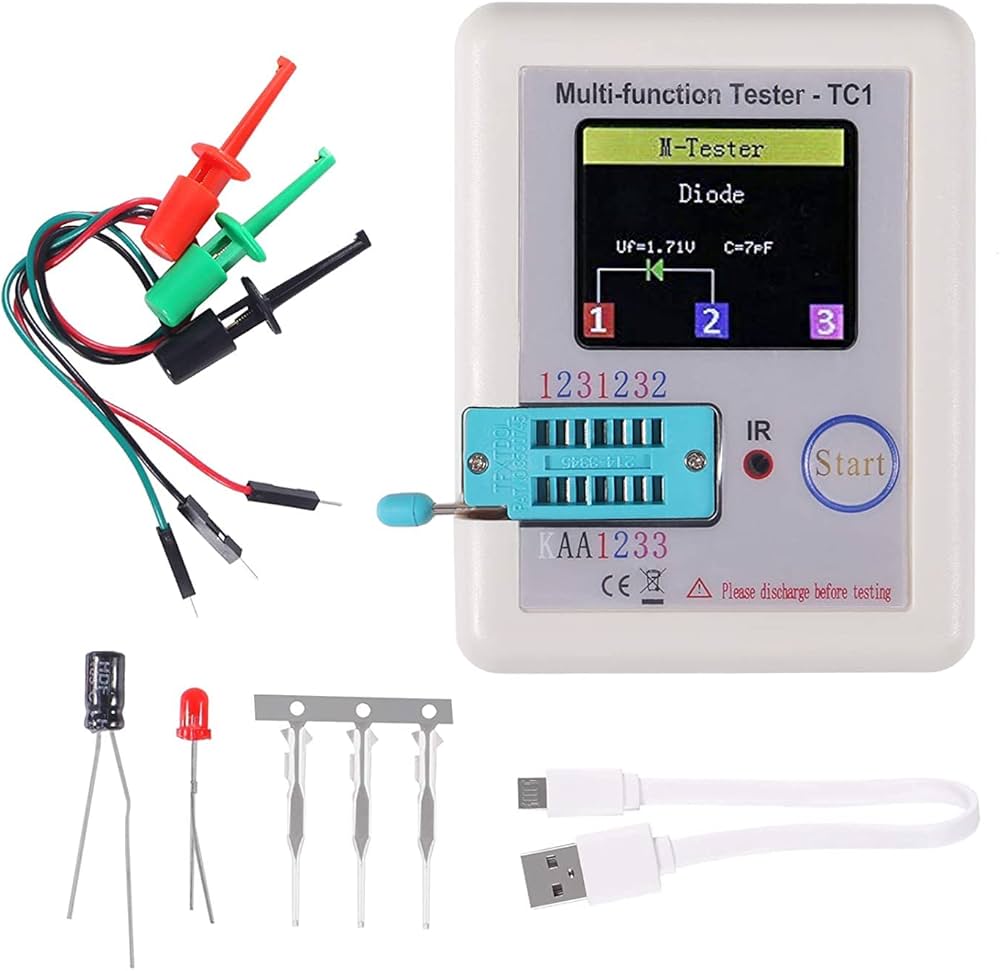

Product Description:
-The LCR-TC1 Multifunction Tester is a compact, intelligent component analyzer designed for quick, accurate identification and measurement of a wide range of electronic components. Featuring an easy-to-use interface and a clear color LCD display, this tester is ideal for technicians, students, repair shops, and electronics hobbyists who need fast, reliable readings.
With automatic detection and precise measurement capabilities, the LCR-TC1 streamlines troubleshooting and circuit analysis, making it an essential tool for any electronics workspace.

Key Features

• Automatic Component Identification – Simply connect the component; the tester detects type, pinout, and parameters.

• Wide Component Support including:

  • Transistors (NPN/PNP)

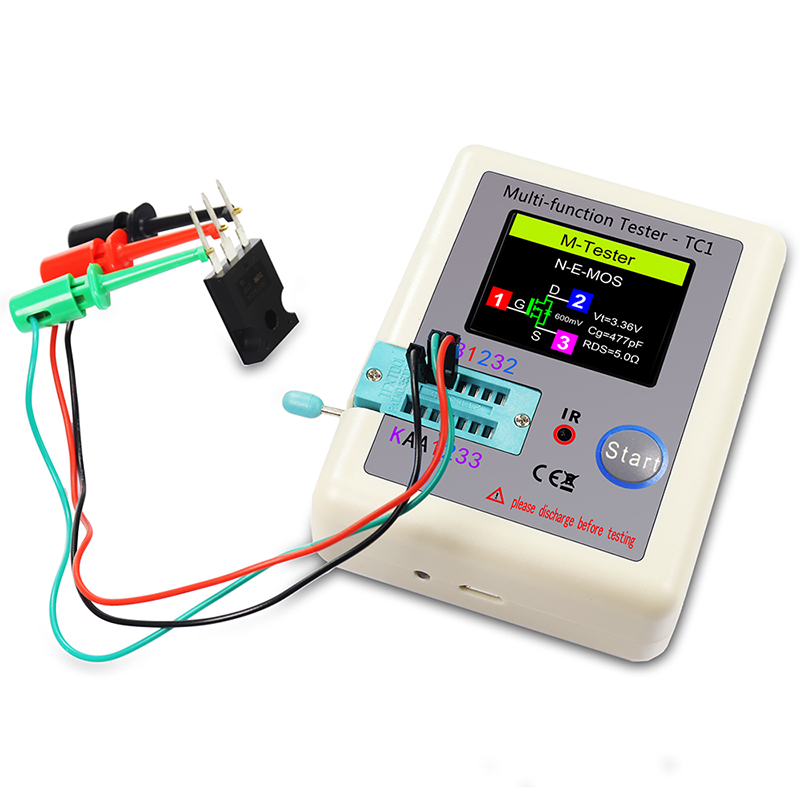

  • MOSFETs (Enhancement/Depletion)

  • JFETs, IGBTs

  • Diodes, Zener Diodes

  • Triacs & Thyristors

  • Resistors, Capacitors, Inductors

  • ESR measurement for electrolytic capacitors

• High-Resolution 1.8″ Color LCD Display – Clear parameter readings and graphical representations.

• Capacitance Measurement from small pF to large mF ranges.

• Internal Battery / Rechargeable via USB depending on model.

• Self-Calibration Function for more accurate testing.

• Simple One-Button Operation for ease of use.

Technical Specifications (Typical)

• Display: 1.8″ TFT Color Screen

• Power Supply: Built-in Li-ion battery / Rechargeable via micro-USB

• Measurement Range:

  • Resistance: 0.1Ω – 50MΩ

  • Capacitance: 25pF – 100mF

  • Inductance: 0.01mH – 20H

• ESR Test: Yes (for capacitors)

• Transistor Parameters: hFE, leakage current, threshold voltage

• Zener Diode Detection: Up to ~30V (external supply required for high-voltage test)

• Auto Power-Off: Yes

Applications

• Electronics repair & troubleshooting

• Component verification and sorting

• Circuit prototyping and analysis

• Educational electronics learning

• Hobby electronics labs and workshops
