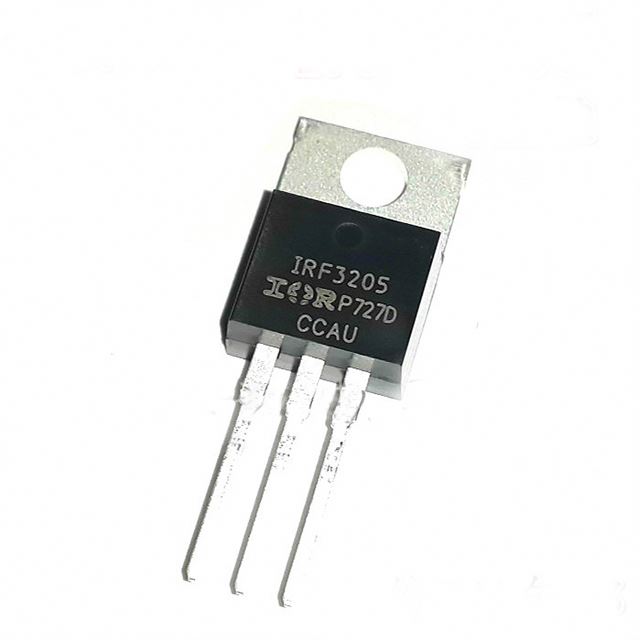

The IRF3205 MOSFET is a rugged, high-current N-channel transistor built for applications that demand efficient, reliable power switching. With its ultra-low on-resistance and excellent current-handling capability, it’s ideal for motor drivers, DC-DC converters, battery systems, and high-power load control.

---

Why This MOSFET Stands Out

• Very High Current Capacity: Can handle extremely high drain current (up to around 110 A under ideal conditions).

• Strong Voltage Rating: Supports drain-source voltages up to 55 V.

• Ultra-Low On-Resistance: RDS(on) is around 0.008 Ω, resulting in minimal heat generation and higher efficiency.

• High Gate Voltage Tolerance: With a ±20 V VGS limit, it offers flexibility in driver circuitry.

• Fast Switching Performance: Great for PWM motor control, DC-DC converters, inverters, and high-frequency switching systems.

• Thermally Robust: Works reliably from –55°C to +175°C with good thermal dissipation characteristics.

• Avalanche Rated: Withstands voltage spikes and sudden energy surges, making it durable in inductive load environments.

• Easy Integration: Comes in a TO-220 package that is simple to mount and cool.

---

Perfect For…

• Motor drivers (DC motors, pumps, fans)

• Inverters and solar power systems

• Battery management and high-current switching

• RC vehicles, robotics, and DIY electronics

• Power supplies and converters

• Automotive 12 V/24 V applications

• High-power LED dimmers and heaters

---

Key Specifications

• Type: N-Channel Power MOSFET

• Continuous Drain Current (ID): ~110 A (with proper cooling)

• Drain-Source Voltage (VDS): 55 V

• On-Resistance (RDS(on)): approx. 8 mΩ

• Gate-Source Voltage (VGS max): ±20 V

• Power Dissipation: Up to ~200 W with heatsink

• Package: TO-220

• Operating Temperature Range: –55°C to +175°C

• Gate Charge (Qg): approx. 97 nC

---

Practical Tips for Best Use

• Drive the gate properly: Use a 10 V gate drive for full enhancement and minimal on-resistance.

• Use a heatsink: At high current, proper cooling is essential for safe operation.

• Protect against inductive loads: Add flyback diodes or snubbers when switching motors, coils, or solenoids.

• Short, thick wiring: Reduces resistance and heating in high-current paths.

• Add a gate resistor: Helps control switching speed, reduce noise, and limit inrush current.

• Parallel MOSFETs carefully: Ensure matched devices and proper layout if combining for higher current.

---

Final Thought

The IRF3205 is a trusted, high-performance MOSFET that delivers exceptional efficiency and durability in demanding power applications. Whether you’re building a motor controller, inverter, or any high-current system, this MOSFET offers the strength, speed, and stability needed for professional-grade results.
