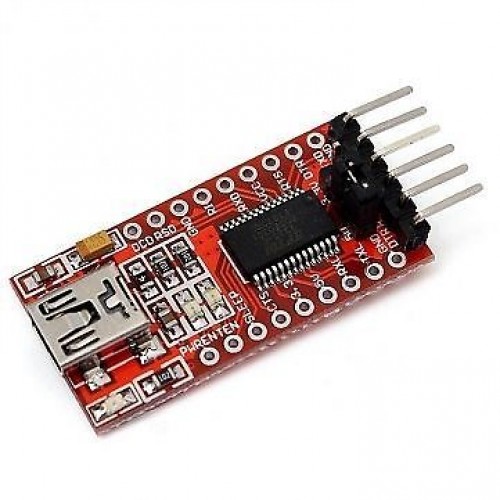

The FT232RL USB to TTL Serial Adapter is one of the most dependable and widely used USB-to-serial communication tools in electronics. Powered by the FTDI FT232RL chip, it allows you to easily connect your computer’s USB port to microcontrollers, development boards, sensors, and other TTL-level devices. Whether you’re programming Arduino Pro Mini boards, debugging ESP modules, or sending serial data to custom circuits, this adapter ensures stable, error-free communication at both 3.3V and 5V logic levels.

---

Key Features & Advantages

• FTDI FT232RL Chipset
  A trusted, high-quality USB-serial converter known for stability, accurate timing, and excellent driver support across Windows, macOS, and Linux.

• Selectable 3.3V & 5V Output
  A built-in jumper lets you choose the logic level you need, making it compatible with a wide range of microcontroller platforms including Arduino, ESP8266, ESP32, STM32, and bare-metal AVR boards.

• Stable USB Interface
  Ensures reliable and fast serial communication with automatic handling of signal levels and error recovery.

• Multiple Useful Pins
  Exposes TXD, RXD, GND, VCC, CTS, and RTS pins, allowing both basic and advanced serial communication or hardware flow control.

• Plug-and-Play Operation
  Drivers install automatically on most systems. Once connected, it appears as a virtual COM port for easy use with serial monitors, IDEs, and debugging tools.

• On-board LEDs for TX/RX
  Built-in indicator LEDs flash during data transmission, helping you visually confirm communication status.

• Compact & Lightweight
  Small form factor makes it ideal for portable projects, field debugging, and embedded systems work.

---

Ideal Applications

• Programming Arduino Pro Mini and similar boards

• Serial communication with ESP8266, ESP32, and other Wi-Fi modules

• Firmware flashing for microcontrollers

• Debugging UART output from sensors and custom circuits

• Industrial device communication via TTL serial

• Bootloading and configuring embedded systems

---

Technical Specifications

• Chipset: FTDI FT232RL

• Communication Levels: Selectable 3.3V / 5V

• Interface: USB 2.0 (compatible with USB 3.0 ports)

• Baud Rate: Supports from 300 bps up to 3 Mbps

• Pins Provided: TXD, RXD, GND, VCC, CTS, RTS

• Power Output: Can supply 3.3V or 5V to external circuits

• LED Indicators: TX and RX activity LEDs

• Operating System Support: Windows, Linux, macOS

---

Why This Adapter Is a Must-Have

• Provides clean, stable serial signals for reliable uploading and debugging.

• Works seamlessly with almost all open-source development environments.

• Supports a wide voltage range, making it universally useful for both old and new microcontroller families.

• FTDI chips are known for excellent driver support and long-term reliability—making this one of the safest choices compared to cheap, unstable clones.

---

Pro Tips

• Match your logic level (3.3V or 5V) before connecting to avoid damaging your devices.

• TX goes to RX on the target board, and RX goes to TX.

• If uploading to boards like Arduino Pro Mini, ensure DTR or RST pins are used for auto-reset if needed.

• Use the TX/RX LEDs to troubleshoot communication issues quickly.
