Features
-
Wide voltage input: 90–264VAC / 127–370VDC
-
Operating temperature range: -40°C ~ +85°C
-
DCOK function
-
Isolation voltage: 3000VAC, 5mA, 1 minute
-
High flame-retardant plastic shell package
-
Heat dissipation method: natural cooling
-
Output voltage optional
-
Good short circuit, overload, and over-voltage protection
Application
Industrial control systems, semiconductor manufacturing equipment, factory automation, electromechanical equipment, etc.

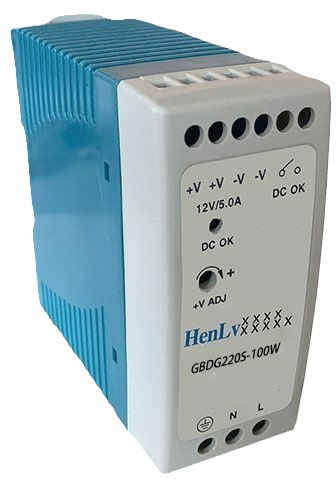

Selection Guide
| Model | Input (V) | Output (V ±1%) | Current (mA) | Output Adjustable Range ADJ (V) | Efficiency (%) | Isolation (VAC) |
|---|---|---|---|---|---|---|
| GBDG220S05-100W | 90–264VAC (127–370VDC) | 5 | 20000 | 4.9–5.5 | 86 | 3000 |
| GBDG220S09-100W | 90–264VAC (127–370VDC) | 9 | 11111 | 8.0–10.5 | 87 | 3000 |
| GBDG220S12-100W | 90–264VAC (127–370VDC) | 12 | 8333 | 10.8–13.8 | 88 | 3000 |
| GBDG220S15-100W | 90–264VAC (127–370VDC) | 15 | 6667 | 13.5–18.0 | 89 | 3000 |
| GBDG220S24-100W | 90–264VAC (127–370VDC) | 24 | 4167 | 21.6–29.0 | 90 | 3000 |
| GBDG220S48-100W | 90–264VAC (127–370VDC) | 48 | 2083 | 43.2–55.2 | 91 | 3000 |
