🔍 Product Overview

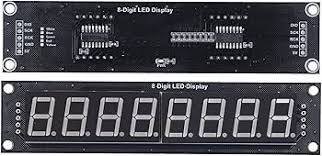

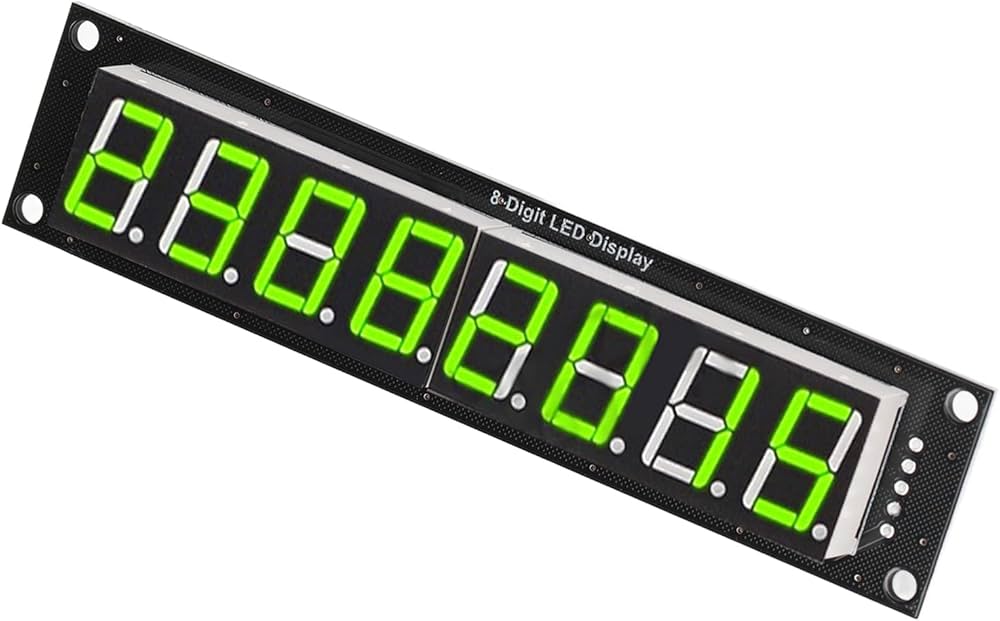

This display module combines the versatile 74HC595 serial-in, parallel-out shift register with a segmented LED display (such as a multi-digit 7-segment or 8-digit display). By using the 74HC595, the module enables control of multiple LED segments with just a few microcontroller pins, making it perfect for numeric displays, counters, and timers.

---

🚀 Why It’s Ideal for Your Projects

• Pin-efficient control — Operates with only three control lines (Data, Clock, Latch), conserving your microcontroller’s I/O pins.

• Expandable design — Multiple 74HC595 chips can be daisy-chained to drive additional digits effortlessly.

• Easy integration — Compatible with popular platforms like Arduino, ESP32, and Raspberry Pi for simple connection and fast prototyping.

---

📝 Key Features

• Controller IC: 74HC595 shift register (serial input, parallel output)

• Display type: Segmented LED digits (typically 7-segment or 8-digit format)

• Interface: Data, Clock, and Latch pins

• Operating voltage: +5 V logic level

• Output: 8 parallel outputs per 74HC595, expandable via cascading

• Design: Compact PCB layout with display and driver circuit

---

🎯 Typical Applications

• Digital timers and counters

• Temperature or sensor value displays

• Scoreboards and numeric readouts

• Educational and prototype projects for learning about shift registers and multiplexing

---

✅ Why You’ll Love It

The 74HC595 display module offers an affordable, compact, and efficient way to manage multi-digit displays using minimal wiring. It’s reliable, easy to code, and perfectly suited for both beginners learning electronics and professionals building compact digital interfaces.
