✅ Product Description

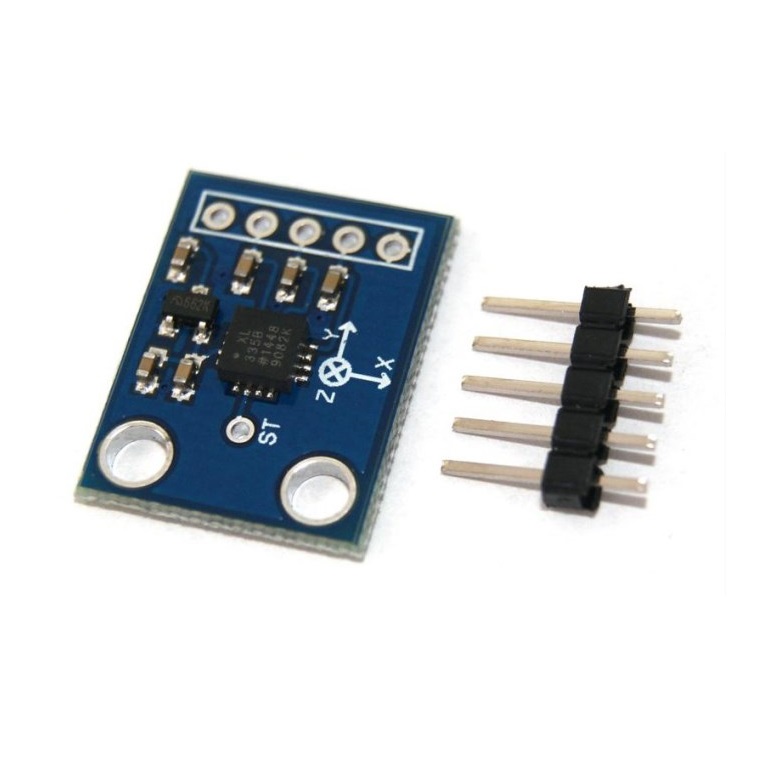

 Product Name: 3-Axis Analog Accelerometer Module – ADXL335 (SKU: HR0150)

Product Description:
How it works -This compact 3-axis accelerometer module offers a simple and reliable way to sense acceleration, tilt, vibration, and motion along three axes (X, Y, Z). Based on the highly-regarded ADXL335 chip, it produces three analog outputs — each proportional to the acceleration experienced along the respective axis. It is a great fit for robotics, IoT, motion detection, balancing devices, tilt sensing, collision detection, and general experimental electronics. The module’s small size and low power consumption make it ideal for embedded systems, Arduino projects, or battery-powered devices.

🔧 Key Features & Specifications

• 3-Axis Sensing: Provides acceleration measurements for X, Y, and Z axes.

• Analog Output: Outputs three analog voltages corresponding to acceleration on each axis — can be read via microcontroller ADC or external ADC converter.

• Acceleration Range: ±3 g (i.e., can detect up to 3 times Earth’s gravity in either direction).

• Low Power Consumption: Typical current draw ~350 µA — suitable for battery-powered and low-power projects.

• Operating Voltage: 1.8 V to 3.6 V — compatible with many microcontroller platforms (e.g., Arduino, AVR, PIC).

• Compact Size: Dimensions approx. 21.48 × 15.87 × 3.07 mm; module weight approx. 2 g — suitable for compact projects or tight enclosures.

• Easy Integration: Includes a header pin strip for easy soldering or breadboard connection. S

⚙️ Typical Applications

• Orientation and tilt detection (e.g., detecting tilt, tilt-switch projects)

• Vibration detection and shock sensing (e.g., impact detection, collision sensors)

• Robotics: balance control, motion sensing, robot orientation

• Wearable or mobile devices needing motion or position data

• IoT devices monitoring movement or vibrations

• Drone/quad-copter stabilization and motion sensing (if combined with gyro/IMU)

• DIY projects: gesture detection, alarm / tamper detection, motion-aware gadgets

• Educational projects and experiments in physics or embedded systems design

Specifications breakthrough

• Sensor Type: 3-Axis Analog Accelerometer

• Chip: ADXL335

• Output Type: Analog (3 channels)

• Acceleration Range: ±3 g

• Voltage Supply: 1.8 V – 3.6 V

• Current Consumption: ~350 µA

• Dimensions: 21.48 × 15.87 × 3.07 mm

• Weight: ~2 g

• Interface: Analog resistive outputs → Microcontroller ADC

• Use Cases: Robotics, tilt detection, vibration detection, motion sensing, IoT
