🛒Description

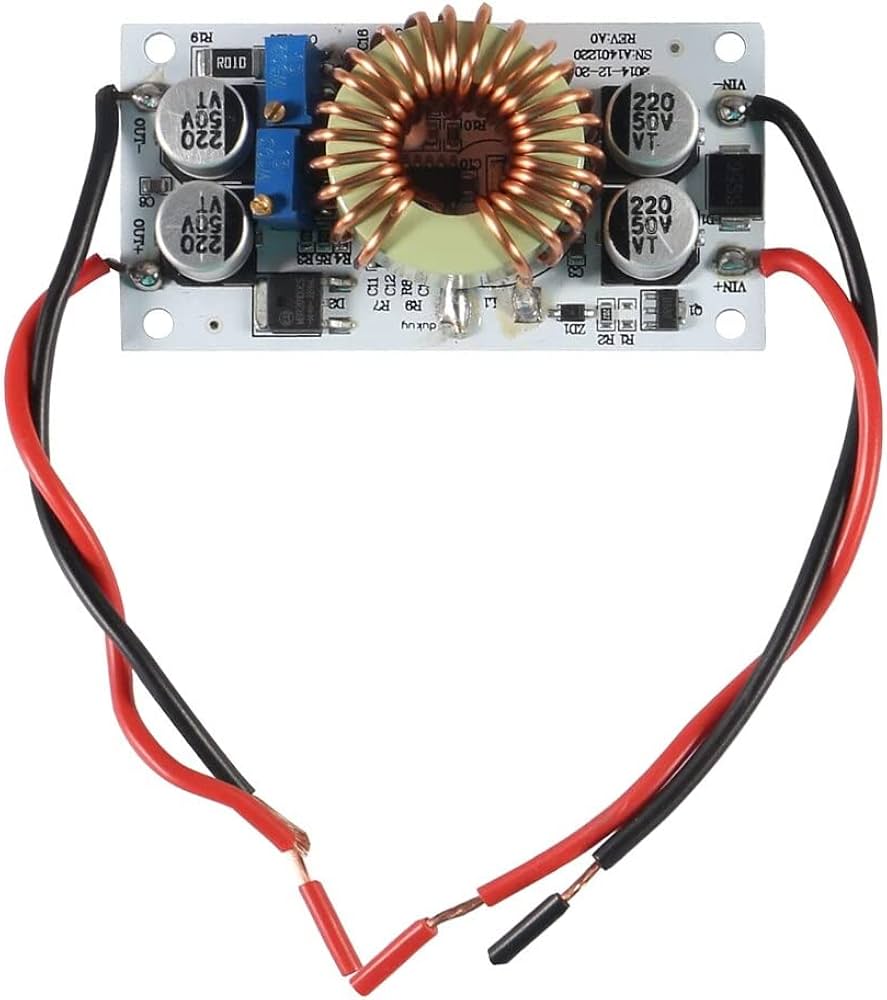

Power your high-voltage projects with this 250W High Power Boost LED Driver & Charger Module, a versatile DC-DC converter designed to step up low input voltages to higher adjustable outputs. Featuring adjustable voltage and current control, this module is ideal for LED driving, battery charging, vehicle power systems, and DIY electronics projects. Built on an aluminium substrate for improved heat dissipation, it delivers stable, efficient, and reliable performance even under high load conditions.
📋 Product Specifications
| Specification | Details |
|---|---|
| Product Name | 250W High Power Boost LED Driver & Charger Module |
| Module Type | Non-Isolated DC-DC Boost Converter |
| Input Voltage | DC 8.5 V – 48 V (adjustable) |
| Input Current | Up to 6 A maximum |
| Output Voltage | DC 10 V – 50 V (continuously adjustable) |
| Output Current | Up to 6 A (adjustable) |
| Maximum Output Power | Up to 250 W (depending on input voltage and cooling) |
| Constant Current Range | 0.2 A – 6 A |
| Static Operating Current | Approx. 10 mA |
| Conversion Efficiency | Up to 96 % |
| Switching Frequency | Approx. 150 kHz |
| Heat Dissipation | Aluminium substrate (high-efficiency cooling) |
| Protection | Reverse input polarity protection |
| Mounting Type | Through-hole mounting points |
| Applications | LED driver, battery charger, vehicle power supply, DIY electronics |
| Package Includes | 1 × Boost Converter Module |
⭐ Key Features & Benefits
-
High Power Output: Supports up to 250 W for demanding applications
-
Wide Input Range: Compatible with 8.5 V–48 V DC power sources
-
Adjustable Voltage & Current: Suitable for LEDs, batteries, and custom circuits
-
Efficient Cooling Design: Aluminium substrate ensures stable operation
-
Versatile Usage: Ideal for automotive, solar, LED lighting, and electronics projects
